📋 Basic Info.
Certification
CE, ISO13485
Properties
Implant Materials & Artificial Organs
Instrument Classification
Class III
After-Sale Service
Online Technical Support
Package

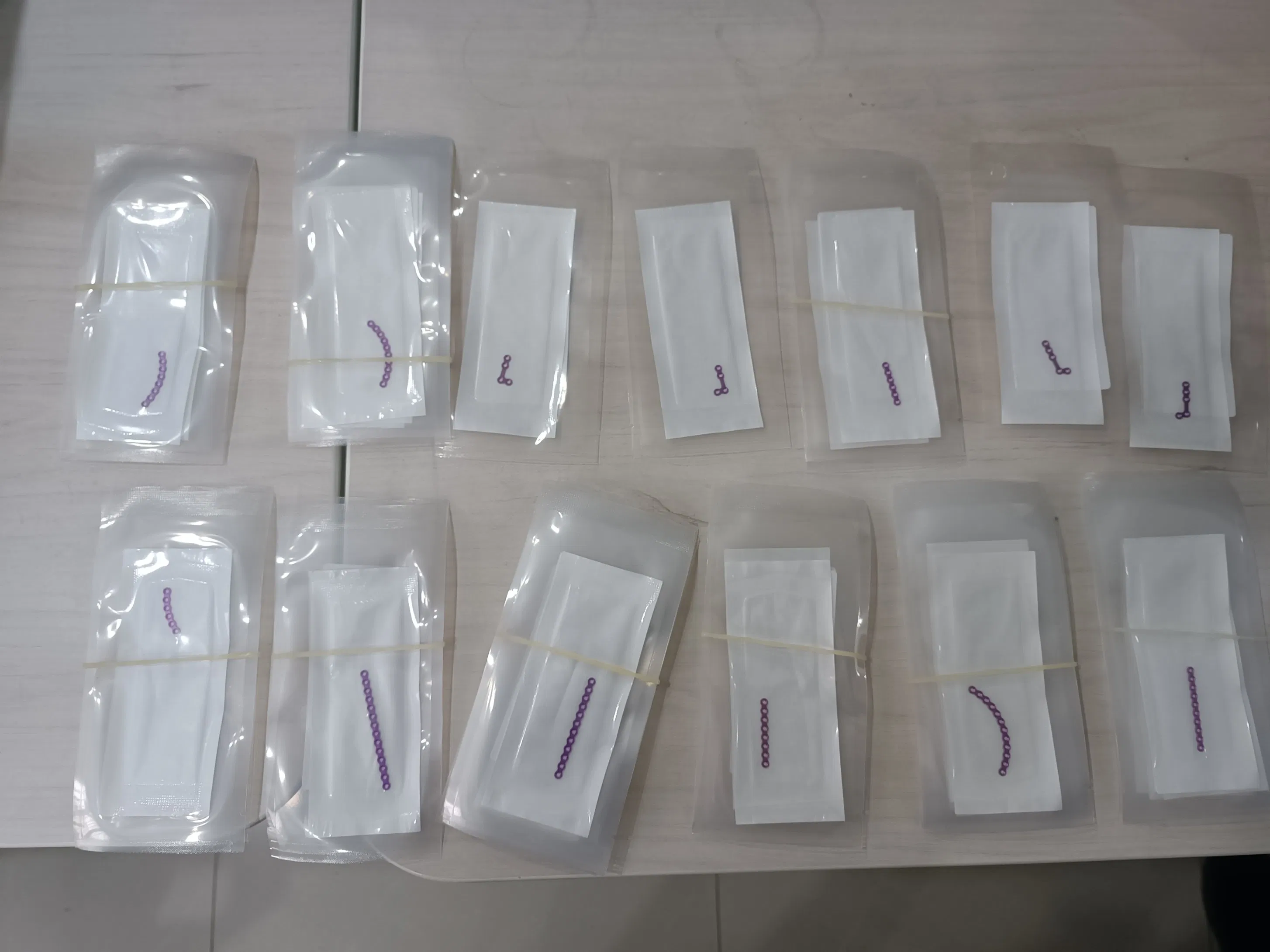

Sterile/Non-Sterile Package
Production Capacity
50000 Sets/Year
💎 Product Introduction
Key Product Features
- Reversible Use: Locking maxillofacial micro and mini plate can be used reversibly.
- Locking Mechanism: Advanced squeeze locking technology.
- Versatile Compatibility: One hole selects two kinds of screw (locking and non-locking), allowing free collocation to meet diverse clinical indications.
- Premium Material: Adopt special customized German ZAPP pure titanium with superior biocompatibility and uniform grain size; does not affect MRI/CT examinations.
- Anatomic Design: Plate hole features a concave design so screws combine closely with lower incisures, reducing soft tissue discomfort.
- Patient Comfort: Smooth edges of the bone plate reduce stimulation to soft tissues.
⚙️ Matching Components

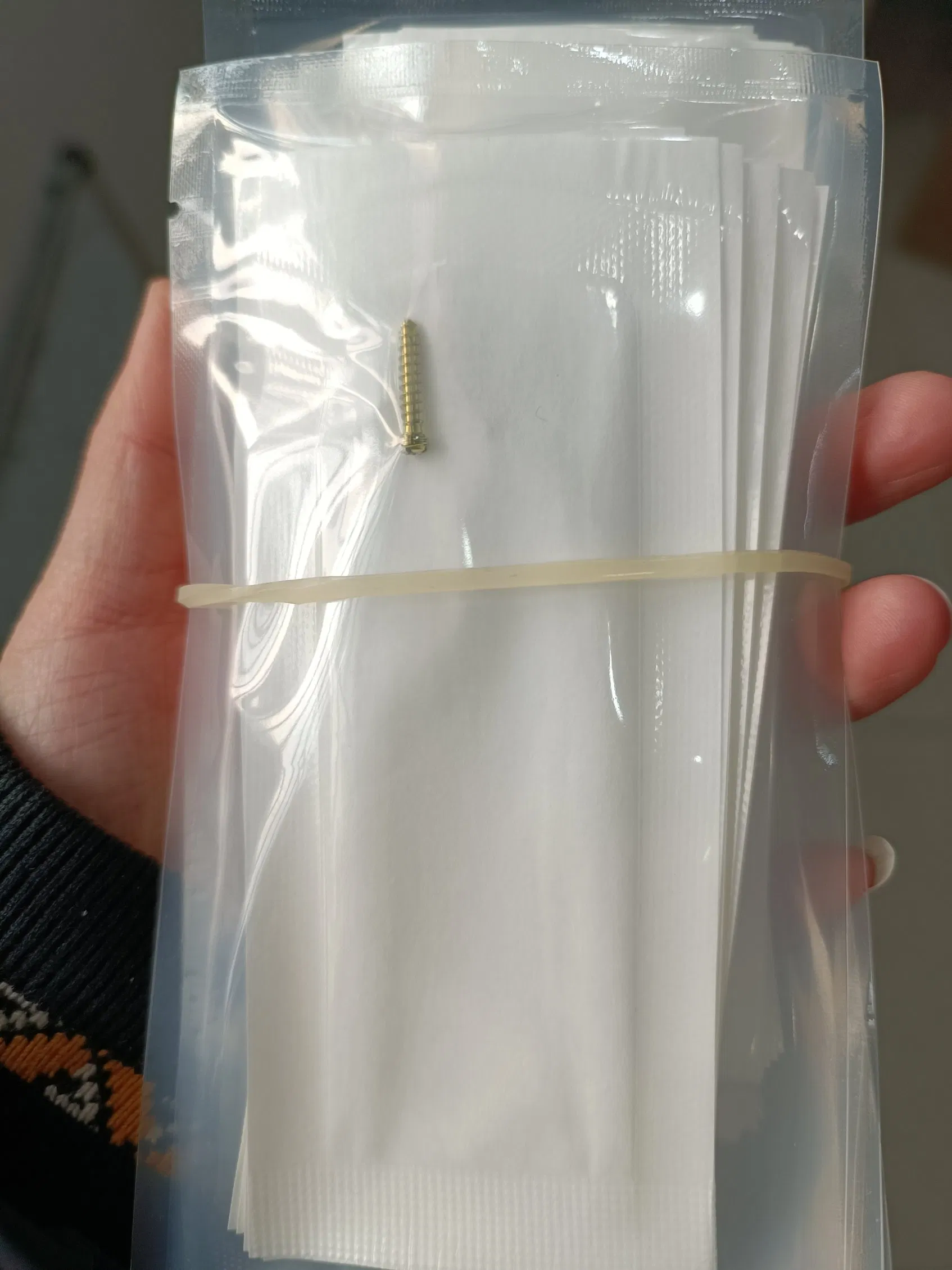

Matching Screws:

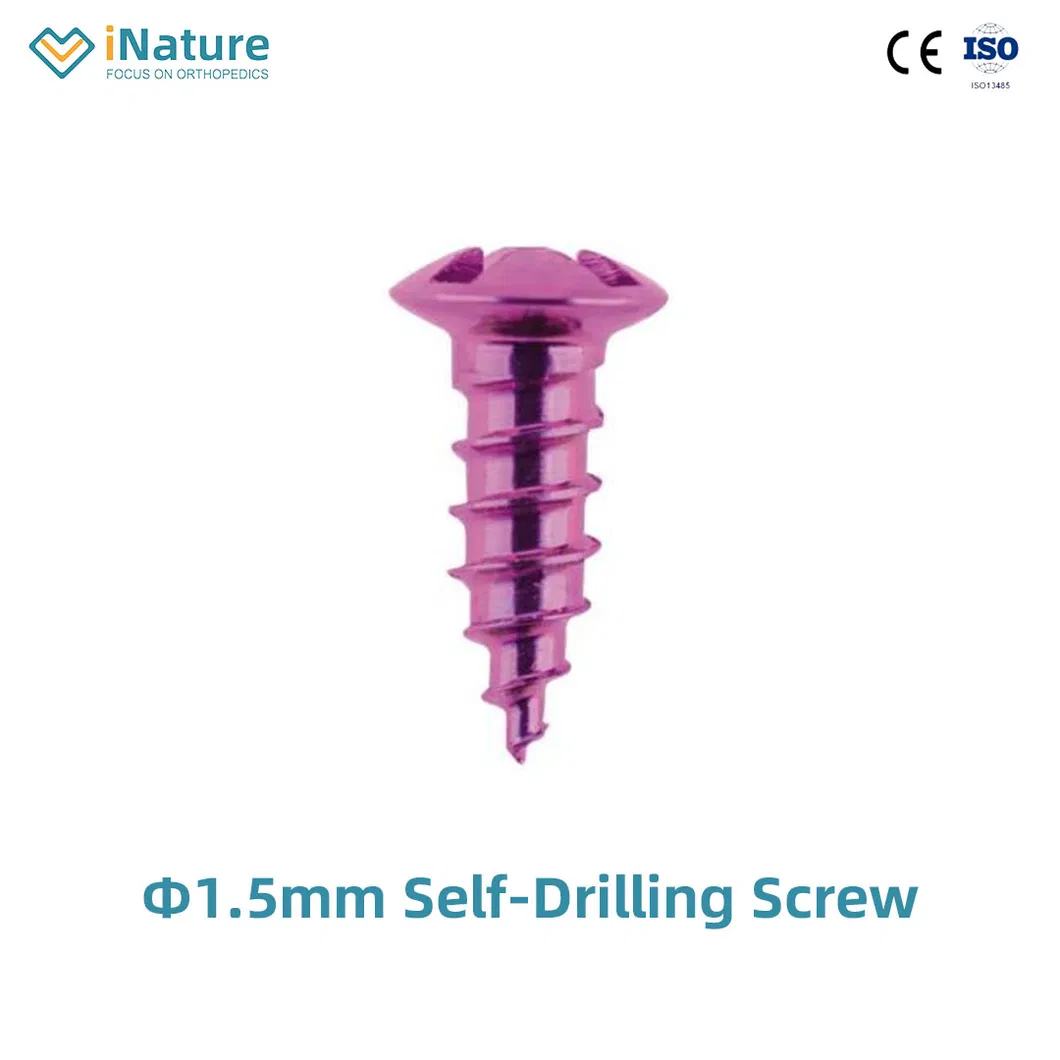

- φ1.5mm self-drilling screw
- φ1.5mm self-tapping screw
- φ1.5mm locking screw
Matching Instruments:
- Medical drill bit φ1.1*8.5*48mm
- Cross head screw driver: SW0.5*2.8*95mm
- Straight quick coupling handle
📊 Technical Specifications
| Model |
Specification |
| Maxillofacial Micro Locking X-Plate | 4 holes, 0.6mm, 14mm |
| Maxillofacial Micro Locking Rectangular Plate | 4 holes, 0.6mm, 14*14mm |
| Maxillofacial Micro Locking Straight bridge Plate | 4 holes, 0.6mm, 20mm |

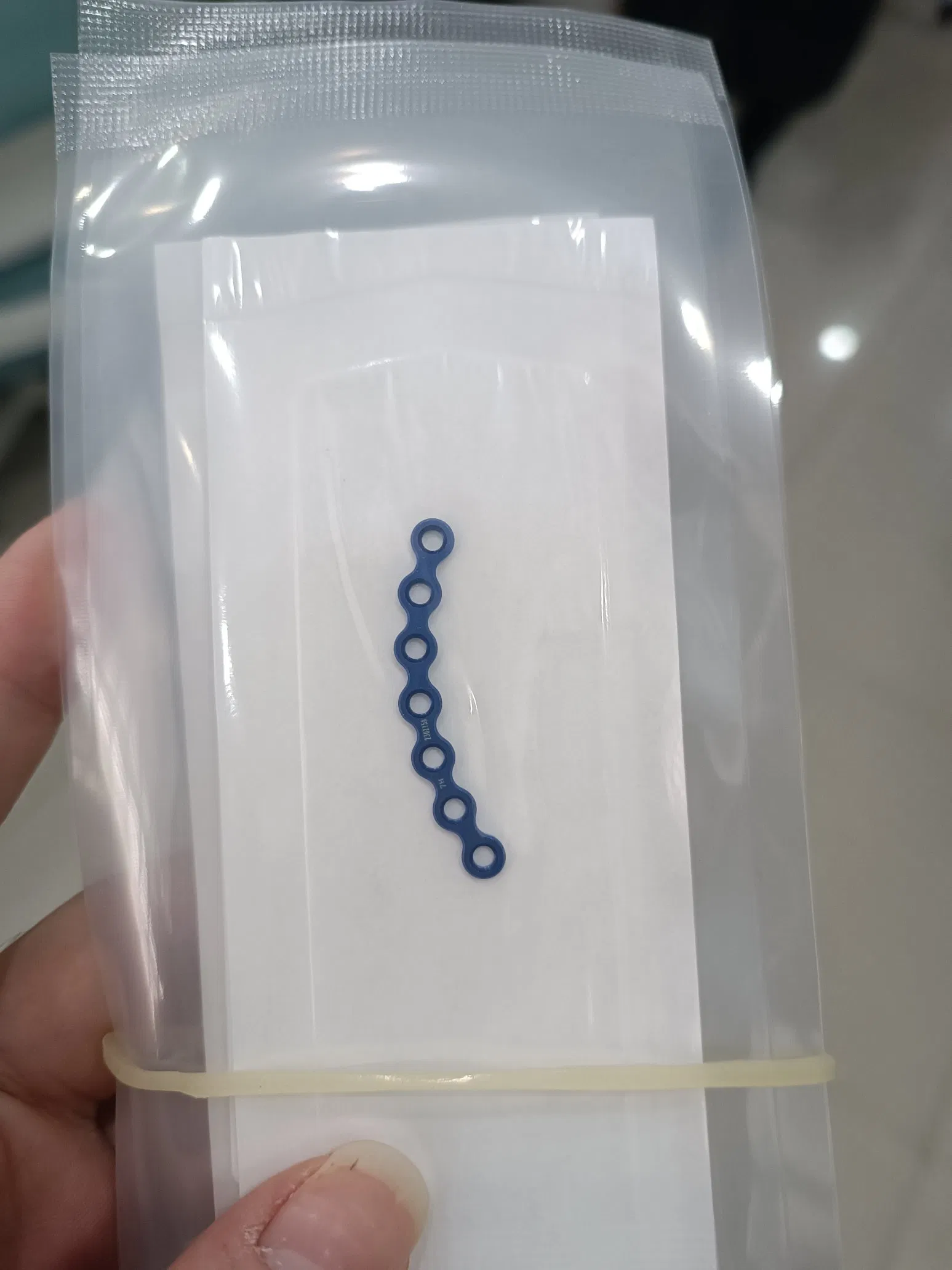

| Maxillofacial Micro Locking Straight Plate | 6 holes, 0.6mm, 24mm |
| 8 holes, 0.6mm, 32mm |
| 10 holes, 0.6mm, 40mm |
| 12 holes, 0.6mm, 48mm |
| 14 holes, 0.6mm, 56mm |

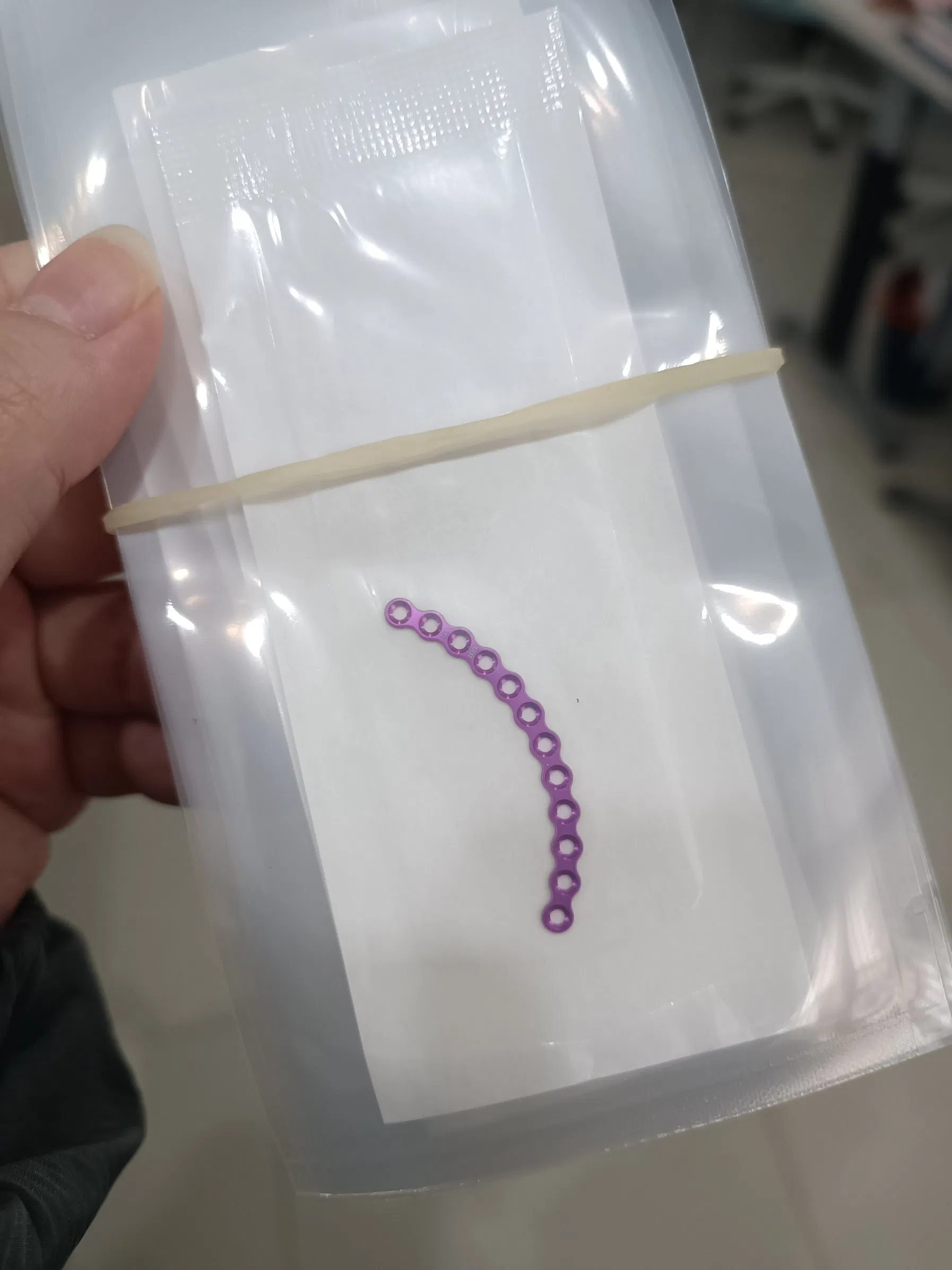

| Maxillofacial Micro Locking Arc Plate | 6 holes, 0.6mm, 24mm |
| 8 holes, 0.6mm, 31mm |
| 10 holes, 0.6mm, 38mm |
| 12 holes, 0.6mm, 44mm |
| 14 holes, 0.6mm, 49mm |
| Maxillofacial Micro Locking 110°L-plate | 4 holes, 0.6mm, 16mm |
| 5 holes, 0.6mm, 20mm |
| Maxillofacial Micro Locking 90°L-plate | 4 holes, 0.6mm, 16mm |
| Maxillofacial Micro Locking Y-plate | 6 holes, 0.6mm, 17mm |
| Maxillofacial Micro Locking T-plate | 5 holes, 0.6mm, 16mm |
| 7 holes, 0.6mm, 24mm |
| Maxillofacial Micro Locking Y-plate | 6 holes, 0.6mm, 24mm |
| 7 holes, 0.6mm, 28mm |

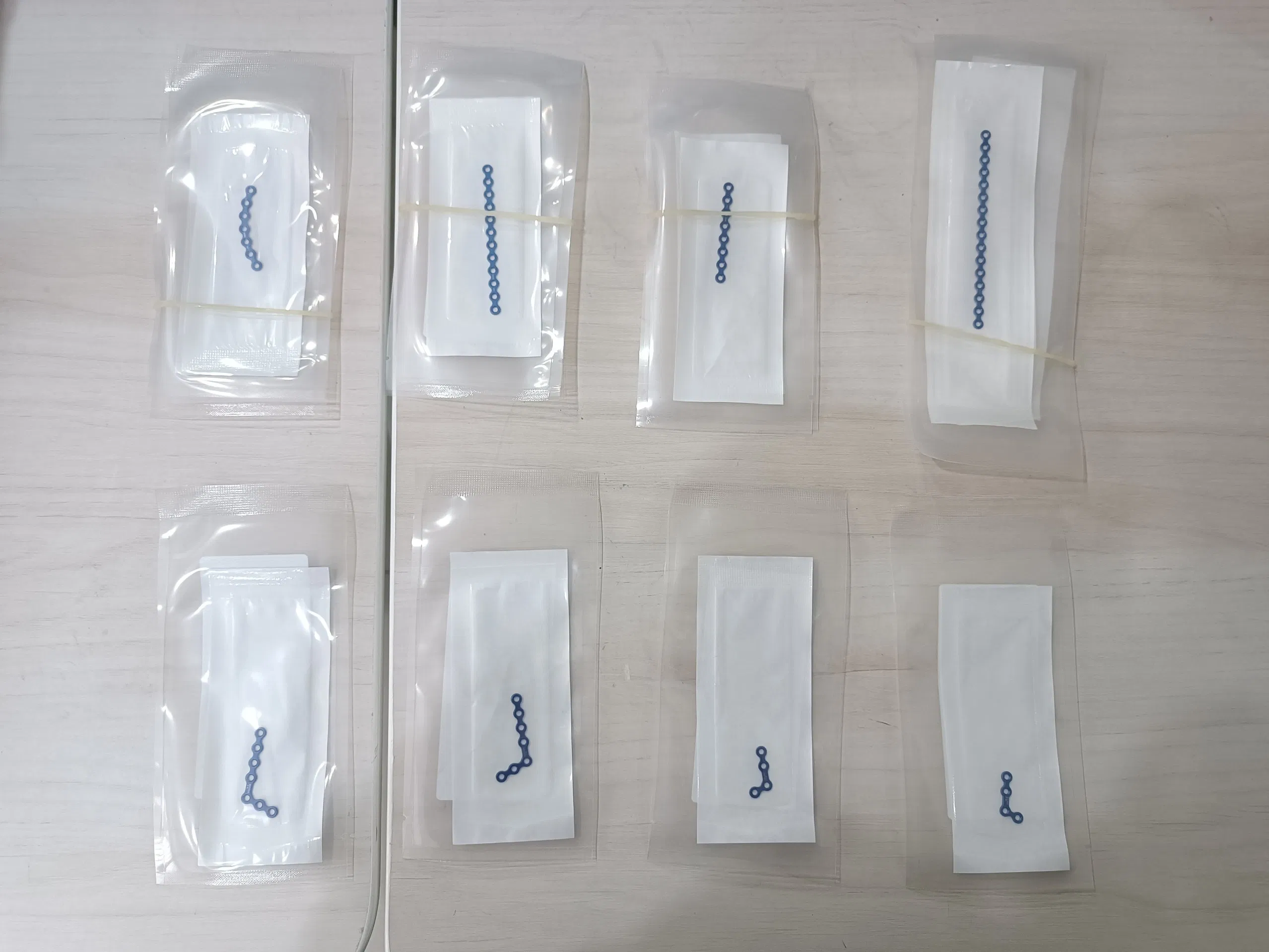

🖼️ Product Visuals
Frequently Asked Questions
What material is used for the Maxillofacial plates?
The plates are manufactured using high-quality German ZAPP pure titanium, ensuring excellent biocompatibility and MRI/CT compatibility.
Can I use both locking and non-locking screws with the same plate?
Yes, the universal hole design allows for the free collocation of both locking and non-locking screws, providing greater flexibility for clinical indications.
How does the design help reduce patient discomfort?
The plates feature a concave hole design and smooth edges, which allow screws to sit more flush and minimize stimulation or irritation to the surrounding soft tissues.
What are the available thicknesses and hole options for the straight plates?
The standard thickness is 0.6mm, with hole configurations ranging from 4 holes up to 14 holes, depending on the specific model and bridge length.
Are the products certified for international medical use?
Yes, all products in this series are Class III medical instruments and carry both CE and ISO13485 certifications.
